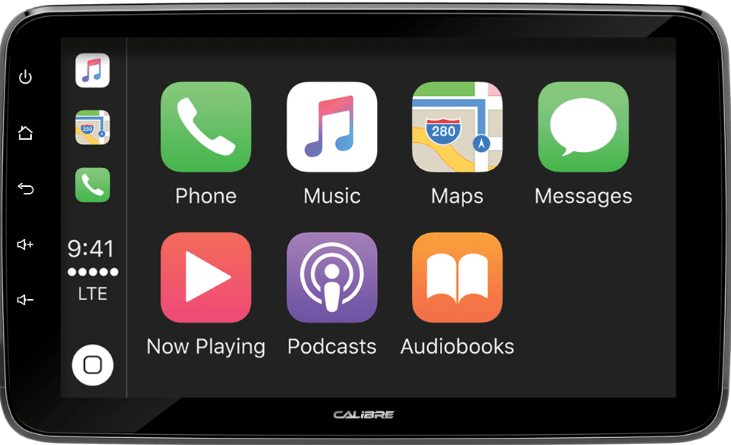

CALIBRE 9 INCH WIRELESS HEADUNIT

GENERAL
• 9 inch 1024x600 High Resolution Capacitive Touchscreen
• Android 9 OS
• Ultra Memory
• Steering Wheel Control (Programmable)
• Digital Clock
• ISO 1-DIN Mounting
• Speaker Impedance 4-8ohm
• 10.8~16 DC Voltage
• -20° to +60°C Operating Temp
• 238W x 143H mm Floating Panel
• 178W x 50 mm Body

NAVIGATION
• Via CarPlay/Android Auto

MULTIMEDIA
• Built-in Wi-Fi
• 3 x Rear USB 2.0
• 1 x Rear A/V RCA Input
• 2 x Camera Input (PAL/NTSC/720p/1080p)
• Audio Formats: AAC/APE/FLAC/MP3/WMA
• Video Formats: MPEG/H.264/MP4/AVI/MKV/FLV/WMV
• Image Formats: JPG/JPEG/PNG/BMP/GIF

TUNER
• PLL Synthesized AM/FM
• ELITE RDS AM/FM Tuner
• FM 87.5-108MHz; AM 531-1701KHz
• 18 FM/ 12 AM Presets

AUDIO
• Max Power: 4x45W @ 4Ω
• RMS Power: 4x20W @ 1KHz 1% THD 4Ω
• 16 Band EQ: 62.5/100/160/250/400/500/600/700/1K/1.6K/2K/3k/4K/5K/7K/10K/16K
• Sub Out LPF: 25/31.5/40/50/63/80/100/125/160/200/250Hz
• Time Alignment: Front L/R, Rear L/R, Sub
• Loud/Mute
• 4 x RCA Pre-out 5V
• 1 x Sub RCA Pre-out 5V

BLUETOOTH
• A2DP Audio Streaming
• Hands Free Phone
• Simultaneous 2 x Phone Connect
• Phonebook & Search
• Call History
• External Microphone

INCLUDES

• 1m USB Lead x 2
• 10cm USB Lead
• DAB+ Antenna
• GPS Antenna
• Wi-Fi Antenna
• ISO Wiring Harness
• Camera Harness
• CANBUS Wiring Harness
• Front Camera & MIC Harness
• Surround Frame
• Installation Cage
• Removal Keys
• External HF Mic
